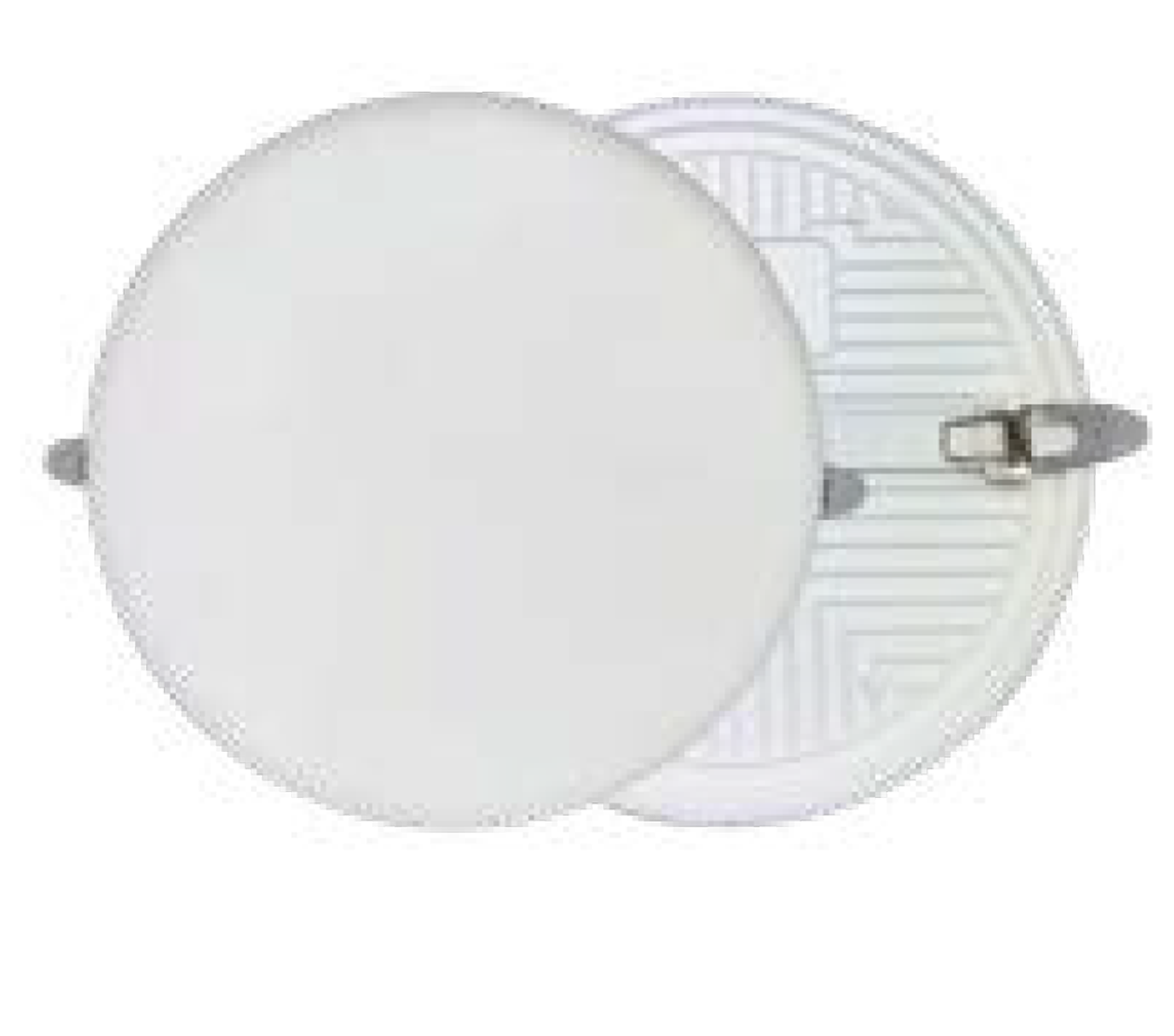

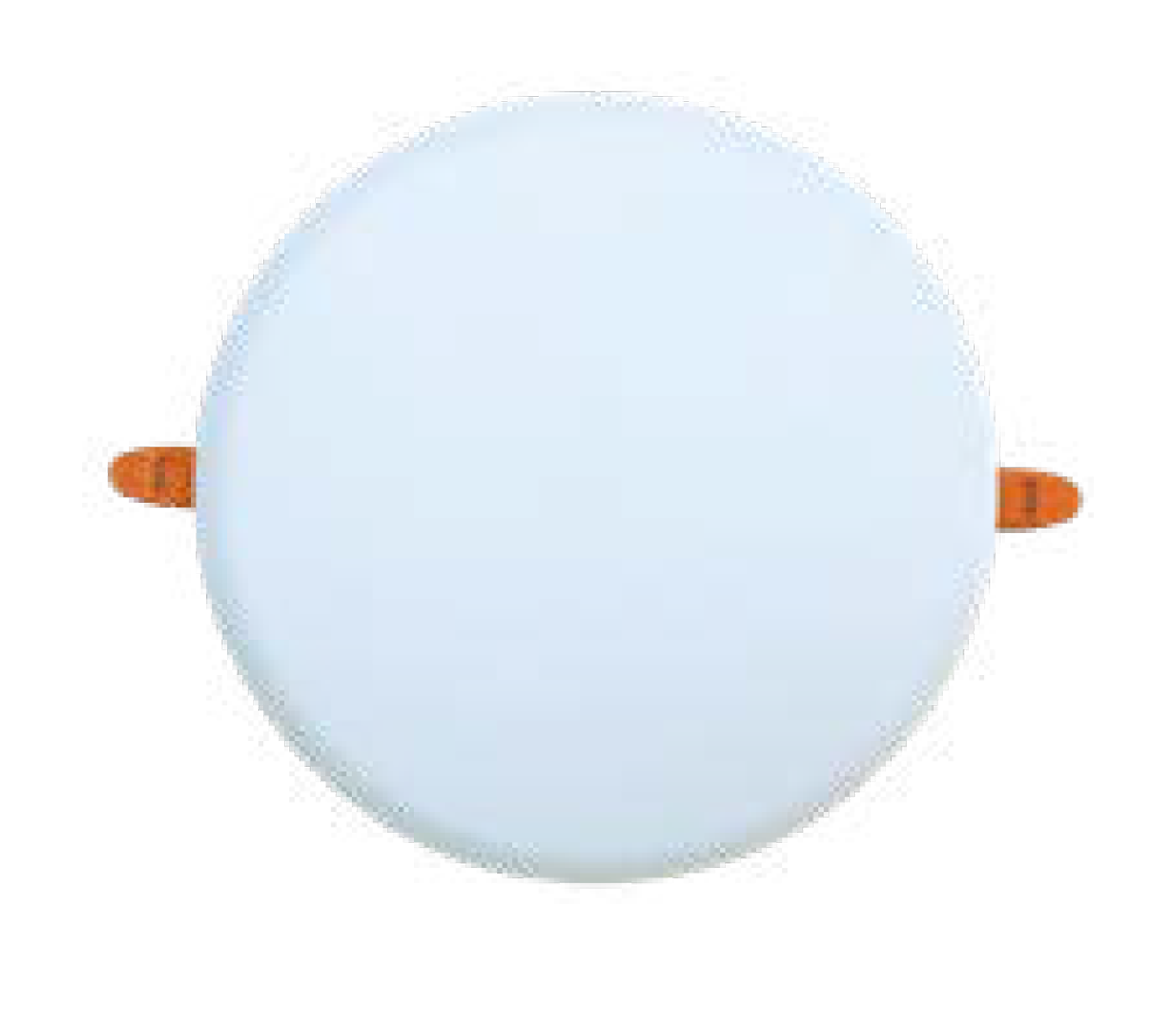

FRAMELESS ADJUSTABLE PANEL LIGHT
|
Model |
AS-LED-AP8W |
AS-LED-AP18W |
AS-LED-AP24W |
AS-LED-AP36W |
|
|
Color Temperature |
3000K; 10000K |
||||
|
Input Voltage |
85-265V |
||||
|
Cut-out |
Ø 44.5mm |
Ø 80mm |
Ø 165mm |
Ø 200mm |
|
|
Power |
8W±5% |
18W±5% |
24W±5% |
36W±5% |
|
|
Lumens |
70lm/W±10% |
80lm/W±10% |
|||
|
Lifetime |
25000 hrs |
||||
|
Color Rendering |
70CRi |
||||
|
Size (Ø) mm |
Ø 90mm |
Ø 120mm |
Ø 170mm |
Ø 225mm |
|
|
Warranty |
2 Years |
||||
|
Model |
AS-LED-AP18W (3 COLOR) |
AS-LED-AP24W (3 COLOR) |
AS-LED-AP36W (3 COLOR) |
|
Color Temperature |
3000K–4300K-8000K |
||
|
Input Voltage |
85-265V |
||
|
Cut-out |
Ø 80mm |
Ø 165mm |
Ø 200mm |
|
Power |
18W±5% |
24W±5% |
36W±5% |
|
Lumens |
80lm/W±10% |
||
|
Lifetime |
25000 hrs |
||
|
Color Rendering |
70CRi |
||
|
Size (Ø) mm |
Ø 120mm |
Ø 170mm |
Ø 225mm |
|
Warranty |
2 Years |
||
|
Model |
AS-LED-AP10W |
AS-LED-AP18W |
AS-LED-AP24W |
AS-LED-AP36W |
|
|
Color Temperature |
3000K; 4000K; 10000K |
||||
|
Input Voltage |
85-265V |
||||
|
Cut-out |
Ø 44.5mm |
Ø 80mm |
Ø 165mm |
Ø 200mm |
|
|
Power |
8W±5% |
18W±5% |
24W±5% |
36W±5% |
|
|
Lumens |
70lm/W±10% |
80lm/W±10% |
|||
|
Lifetime |
25000 hrs |
||||
|
Color Rendering |
70CRi |
||||
|
Size (Ø) mm |
Ø 90mm |
Ø 120mm |
Ø 170mm |
Ø 225mm |
|
|
Warranty |
2 Years |
||||
